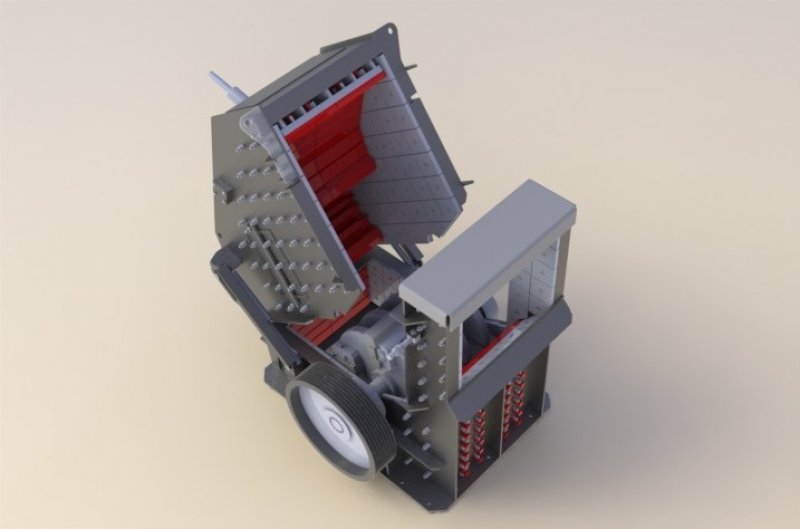

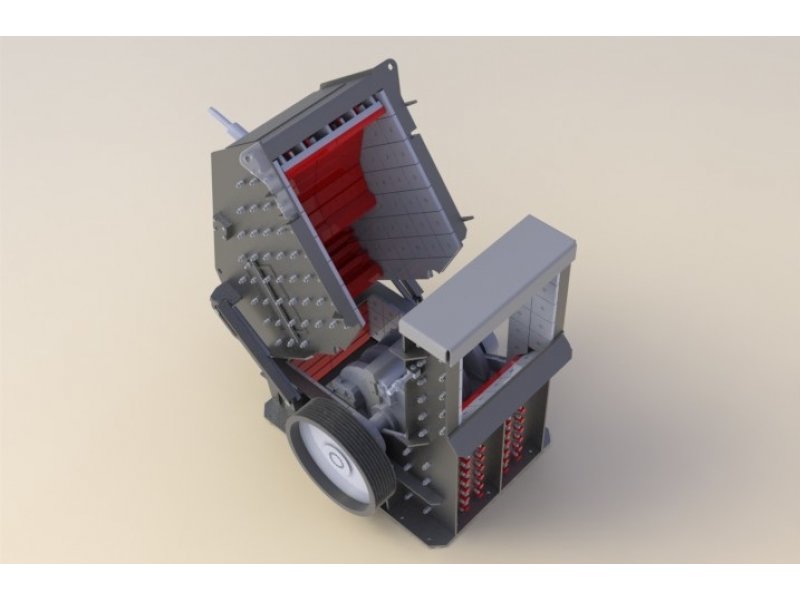

Primary Impact Crusher
PDK Crushers which have the high speed breakage, are used as a primer stone crushers. It is produced by our engineers meticuolusy in order to break the middle hard and low abrasive stones. Their reduction and cubic ratio is very high and their type is the crusher with rotor. Primary impact crushers are preferred to break the big size stones by using the special alloy plates and breakage plates. All setting system and body opening mechanism of our Primary impact crushers can be done with the hydraulic pistons easily. We manufacture the Primary impact crushers as Mobile Primary Impact Crushers and Fixed Primary Impact Crushers.
| PRIMARY IMPACT CRUSHER | |||||
| MODEL | ROTOR DIMENSIONS (mm) | MAX. FEED SIZE (mm) | CAPACITY (mtph) | POWER (Kw) | |
| PCI-1100 | 1200x1100 | 500 | 175 - 200 | 160 - 185 kW | |
| PCI-1300 | 1200X1300 | 650 | 200 - 375 | 185 - 200 kW | |
| PCI-1400 | 1400x1400 | 900 | 300 - 450 | 200 - 315 kW | |
| PCI-1600 | 1400x1600 | 1000 | 450 - 600 | 250 - 355 kW | |
| PCI-2000 | 1600x2000 | 1300 | 650 - 900 | 355 - 400 kW | |
